Radiation sensor to measure different kinds of radiation

Si-Global Radiation Sensor incl. measuring amplifier

TF29

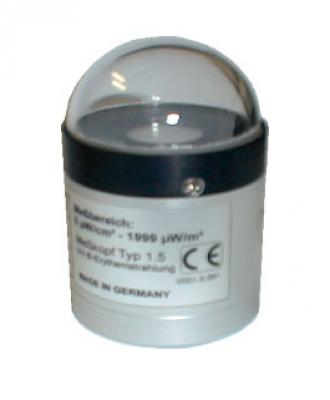

The Sensor measures the global radiation, basing on a silicon diode with diffusor and PMMA-dome.

Because of its good cost-performance ration it is especially suitable as reference for photovoltaic systems, including built-in measuring amplifier.

Technical Specification
Variations

Measuring range: 0...1300 W/m²
Spectral sensitivity: 380 nm...1100 nm
max. spectr. sensitivity: 780 nm
Operating temperature: -20...+60 °C
Output: 6003.1000: 0... 5 V,
6003.2000: 4...20 mA
6003.3000: 0...10 V
Power supply: 9...30 VDC
Diffusor: PTFE
Dom: PMMA (UV- pervious)
Cosinus correction: f2 < 6 %
Linearity: 6003.1000: < 5 %
6003.2000: < 5 %
6003.3000: < 3 %
Absolute error: < 10 %
Weight: approx. 100 g

note 6003.1000Si-Global radiation sensor 0...5 V
note 6003.2000Si-Global radiation sensor 4...20 mA
note 6003.3000Si-Global radiation sensor 0...10 V
